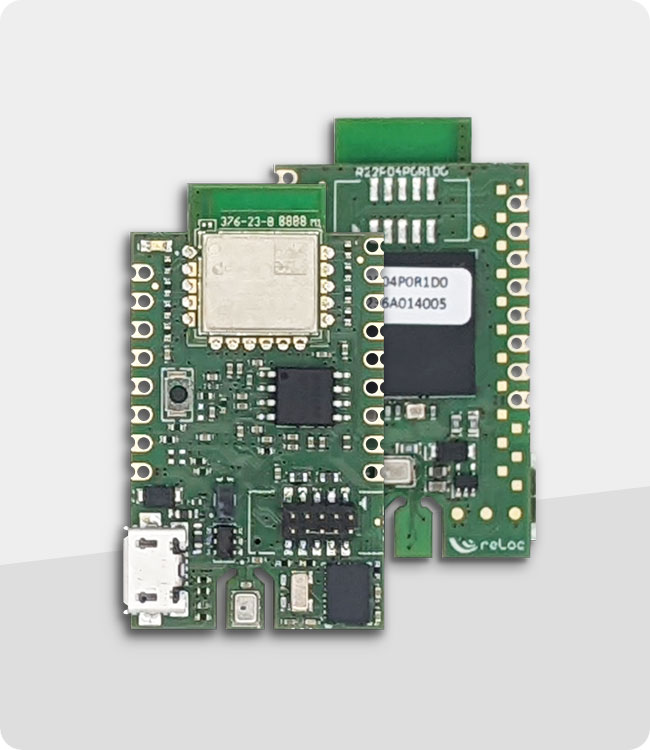

BrickML SOM

A readily deployable plug-and-play edge ML SOM

Buy it on

BrickML SOM is a low-power high-performance self-contained embedded system-on-module designed to run machine learning operations at the edge in industry settings.

BrickML-SOM features on-board compute, sensing and communication capabilities, all packed in one compact system-on-module. It is fully integrated into Edge Impulse’s industry-leading edge ML platform, allowing for the easy addition of advanced AI algorithms.

BrickML module minimizes development time and accelerates speed to market by providing customers with both a highly integrated flexible kit for custom development as well as ready-to-use trained edge ML models.

Key Features

  • 32-bit ARM® Cortex®-M33 core with FPU
  • 200 MHz clock speed
  • Up-to 2MB code flash memory, 8KB data flash and 512KB RAM
  • 128Mbit on-board serial flash
  • 32-bit ARM® Cortex®-M33 core with FPU
  • Bluetooth 5.1 core specification compliant BLE transceiver
  • USB 2.0 Full-Speed device connector
  • Expansion pinout: Ethernet 10/100, USB 2.0 High-Speed, CAN, LTE, UART, I2C, SPI
  • Sensors – Knowles SPH0641LU4H-1 microphone – Renesas HS3001 T/H – Bosch BNO055 9-DOF IM

Main Applications

  • Embedded Machine Learning
  • Inference at the Edge
  • Anomaly Detection
  • Voice and Sound Classification
  • Motor Current Signal Analysis
  • Environmental Condition Analysis
  • Connected Intelligent Sensors
